Zoeller 270-0002, Model N270, Waste-Mate 270 Series, Sewage Pump, 1 HP, 115 Volts, 1 Phase, 15 Amps, 2" NPT Discharge, 132 GPM Max, 29 ft Max Head, 20 ft Cord, Manual

SKU #: 270-0002
Brand: Zoeller
In Stock! (Ships Today !) This item is In Stock at our warehouse distribution center. Stock orders placed Monday through Friday by 1:00 pm EST. will be shipped the same day. Orders placed Friday after 1:00 pm through Sunday will be shipped on Monday.
FREE SHIPPING ON THIS ITEM ! Offer applies to the lower 48 states and excludes Alaska, Hawaii, APO/FPO and international orders. Free standard shipping applies to U.S. orders only and to select items that meet UPS Standard Ground container/cube requirements. Free Shipping
Call Sales Counter !
Order By Phone
Calculate Shipping Ship Weight (48.00 lbs)
0 reviews for this product

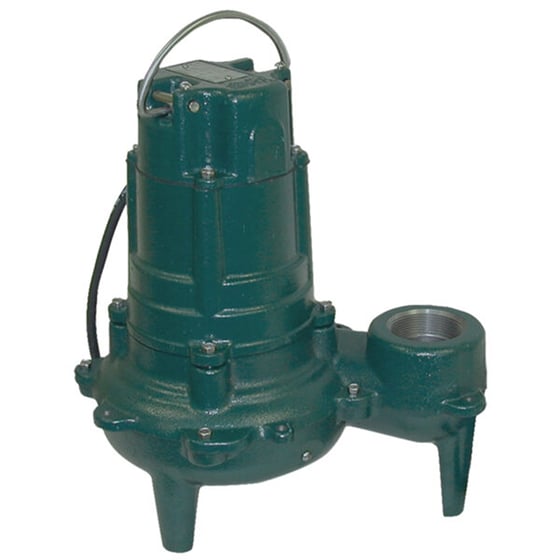

Zoeller "Waste-Mate" N270  Sewage & Dewatering Pump

This submersible pump is designed for use in residential or light commercial dewatering and wastewater applications and can be used to transfer groundwater, effluent or raw sewage. The innovative vortex  impeller design reduces the risk of clogging and allows each pump to pass 2" spherical solids. This durable cast iron pump includes a powder coated epoxy finish to prevent corrosion and is designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance.


  • Corrosion-resistant powder coated epoxy finish
  • Durable cast iron motor housing, cap, and pump housing
  • Engineered plastic base
  • Engineered plastic non-clogging vortex impeller
  • Stainless steel screws, bolts, and handle
  • Motor - 1 HP, 60 Hz, 3450 RPM, oil-filled, hermetically sealed, automatic reset thermal overload protected
  • Neoprene square ring & gasket
  • Carbon and ceramic shaft seal
  • Upper sleeve bearing and lower ball bearing running in a bath of oil
  • 2" NPT vertical discharge
  • Passes 2" spherical solids
  • Maximum operating temperature 130° F
  • 20 ft. UL Listed 3-wire neoprene cord and plug
  • For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump

Control Panel Options

Below are the control panels that can be used with this pump:

Note: Image is illustrative and may not reflect details of actual product.
Mfg. Number270-0002
SeriesWaste-Mate 270
Product TypeSewage/Effluent pump
Horsepower1 HP
Voltage115 Volts
Frequency60 Hz
Discharge Connection 2" NPT vertical
Pump Housing MaterialCast iron
Speed3450 RPM
Impeller MaterialEngineered plastic
Seal TypeSingle
Impeller TypeNon-clogging vortex
Maximum Flow132 GPM
Maximum Head28 ft
Maximum Solids Handling2"
Cord Length20 ft
Maximum Fluid Temperature130°F

Pump Products is now distributing the Zoeller 270 series and Zoeller 4270 series sewage pumps. Each pump in this series is submersible and designed to move sewage in residential or light commercial applications. These pumps can also move groundwater and effluent as well.

Each pump in the Zoeller 270/4270 series features a rugged cast iron volute and motor housing covered with a corrosion resistant powder coated epoxy finish, while the pump base is engineered plastic. The non clog vortex impeller is engineered plastic as well. The screws, bolts and carry handle are all made of fine stainless steel.The shaft seal is a composite of carbon and ceramic with a neoprene square ring and gasket. The motor (60 Hz, 3450 RPM) is oil-filled, hermetically sealed and thermally protected with an automatic reset.

Durability is an important issue for any wastewater pump and the Zoeller 270/4720 series pumps are pressure-tested and submerged to run before they leave the factory. These pumps are not affected by materials normally found in drainage and sewage sumps. The main difference between the two sub-series is that Zoeller 270 pumps have a single seal while Zoeller 4270 pumps have a double seal.

All pumps listed below are single phase operated. Automatic models include a variable level float switch.

Zoeller 270 Series Sewage Pumps

Model Comparison Chart

Model Discharge HP Voltage GPM Max. Head Operation Seal
270-0002 2" NPT 1 115 132 28' Manual Single
270-0002 2" NPT 1 115 132 28' Automatic Single
270-0004 2" NPT 1 230 132 28' Manual Single
270-0006 2" NPT 1 230 132 28' Automatic Single
4270-0002 2" NPT 1 115 132 28' Manual Double
4270-0004 2" NPT 1 230 132 28' Manual Double
Performance Curve

Zoeller 270 Series Sewage Pump Brochure
Zoeller 270 Series Sewage Pump Instruction Manual
Zoeller 270 Series Sewage Pump Repair Parts List
Zoeller 270 Series Sewage Pump Specifications Sheet
